miroMOTION DC20 Breakout Cable Pinouts

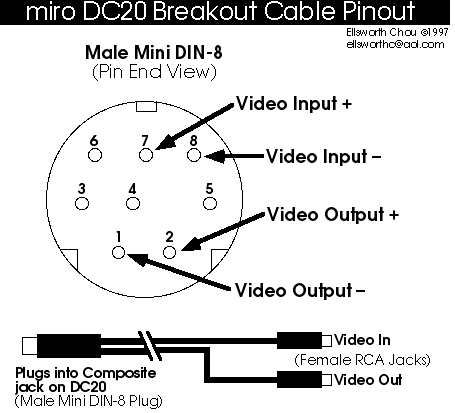

- If you've lost or broken the breakout cable for your miroMOTION
DC20 (and probably the miroVIDEO DC20), here are the pinouts
to create a replacement cable.
- You'll need one male Mini DIN-8 plug for the DC20 end
of the cable. If you can't find the plugs alone, you could buy
a Macintosh serial cable with at least one of these at one end
and cut the cable in half. Use some kind of inline female RCA
(phono) jacks for Video In and Video Out (i.e. Radio Shack Part#
4/4/02 Update: Here's a web
page with a diagram of pinouts for the MiroVideo
DC30+ audio breakout cable.
